Extend Milestone XProtect with desktops, applications, audio, and events — fully integrated as secure ONVIF video devices.
Overview
ITVDesk integrates with Milestone XProtect® through standard ONVIF and RTSP/RTSPS protocols, allowing desktops, applications, POS screens, remote operator workstations, and other digital sources to be presented inside Milestone as standard IP video devices.
This makes it possible to extend a Milestone installation beyond traditional cameras and bring operational systems directly into the VMS environment, with support for live view, recording, playback, audio, metadata, alarms, and operator interaction.
Integration Highlights
- Compatible with Milestone XProtect using the ONVIF Conformant Device Driver
- Supports HTTPS and RTSPS for secure enterprise deployment
- Supports full stream configuration directly through XProtect
- Supports two-way audio, metadata, motion detection, alarm input, and relay output
- Designed for professional environments where reliability, security, and flexibility are critical
Key Features
Secure Communication for Enterprise Environments
ITVDesk supports HTTPS and RTSPS, enabling encrypted control communication and protected video streaming. This is especially important in large corporate, government, industrial, and high-security environments where plain HTTP or unencrypted RTSP is not acceptable.
Native Milestone ONVIF Driver Compatibility
Integration is based on the Milestone ONVIF Conformant Device Driver, which provides a stable and predictable way to connect ITVDesk into XProtect using standard device workflows. From Milestone’s perspective, ITVDesk behaves like a professional IP video device.
Full Stream Configuration from XProtect
Stream parameters can be managed through XProtect, including available channels, stream profiles, and video behavior according to the requirements of the VMS. This allows ITVDesk to fit naturally into existing Milestone installations without forcing a separate management model.
Channel Merge for Server Load and License Optimization
ITVDesk can combine two channels into a single video stream. This is useful when there is limited capacity on the recording server, limited channel availability, or when the goal is to reduce overall VMS load while still keeping multiple visual sources visible inside one stream.
Keyboard Activity as On-Screen Text Overlay
ITVDesk can display keyboard activity as text directly on the video stream. This is valuable for audit scenarios, workstation supervision, operator monitoring, support workflows, POS environments, and incident review where it is important to see not only what happened on screen, but also what was typed.
Two-Way Audio Communication
The integration supports two-way audio, enabling direct communication between the operator in Milestone Smart Client and the remote system. Audio input and output can be integrated to support talkback, operator assistance, remote support, or intercom-like workflows.
Microphone and Speaker Audio Support
ITVDesk supports audio from microphone or speaker sources, allowing more than simple live video. This enables monitoring of workstation sound, operator communications, or audio-driven event scenarios, depending on deployment requirements.
ANR – Automatic Network Replenishment
ITVDesk supports ANR to improve resilience during temporary network interruptions. When connection issues occur, the system helps maintain continuity and reduces the risk of lost footage in professional monitoring environments.
Edge Recording and Buffer Synchronization
When the connection to Milestone is interrupted, ITVDesk can keep a local buffer and synchronize the buffered video to the XProtect Recording Server after reconnection. This Edge Recording approach improves reliability and helps preserve critical evidence during outages or temporary network instability.
Metadata Support
ITVDesk supports metadata integration, enabling the transfer of motion-related and event-related information into the XProtect ecosystem. This allows better rule integration, event handling, and smarter operational workflows.
Motion Detection
Built-in motion detection support allows ITVDesk streams to participate in video analytics and rule-based workflows. This can be used for alarms, recording triggers, event handling, and operational notifications inside Milestone.
Alarm Input Support
ITVDesk supports Alarm In events, making it possible to connect panic buttons, trigger inputs, or other event sources and expose them to XProtect as part of the security workflow.
Relay Output Control from Milestone Smart Client
Through Relay Out support, operators can trigger actions on the local ITVDesk system directly from Milestone Smart Client. This can be used for alarm signaling, workflow automation, local actions, or integration with external devices and processes.
Typical Use Cases
- Desktop Monitoring: Display operator workstations inside Milestone as live video channels.
- POS Monitoring: View cash register activity and keyboard input for audit and investigation.
- Remote Support: Combine video, audio, and interaction in one VMS workflow.
- Operational Oversight: Monitor business applications, dispatch systems, SCADA interfaces, or critical software.
- Evidence Recording: Record digital activity through XProtect with replay and review capabilities.
How It Works
ITVDesk captures desktop, application, or external digital content, encodes it as a live video stream, and exposes it to Milestone through ONVIF and RTSP/RTSPS. The stream can include video, audio, overlays, metadata, alarms, and control functions.

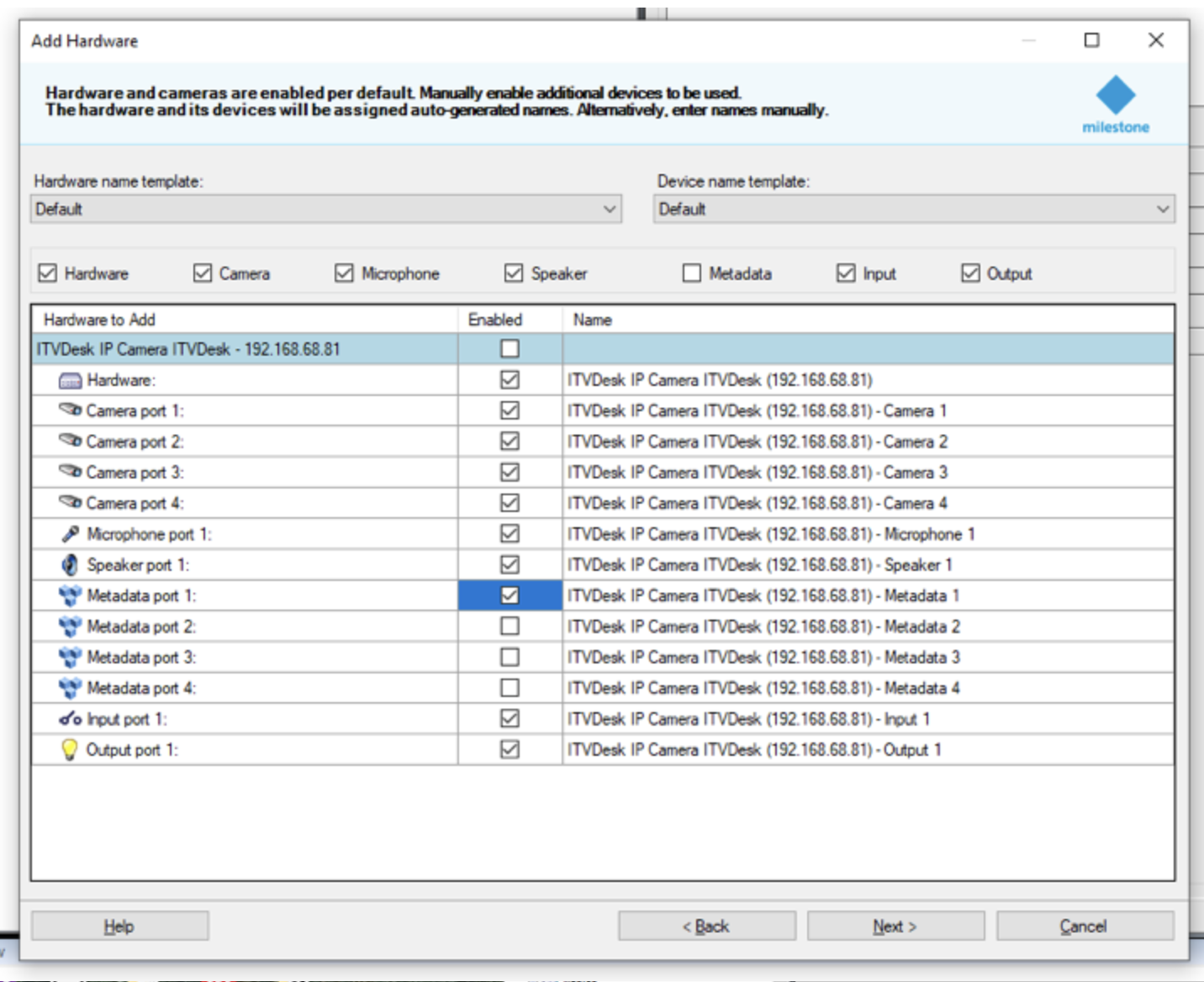

Once added to XProtect, ITVDesk can be handled similarly to other professional video devices inside the Milestone environment, making deployment intuitive for integrators and operators already familiar with the XProtect workflow.
Benefits for Milestone Users
- Brings computers and software systems into the VMS as manageable video endpoints
- Extends Milestone beyond traditional camera-only deployments
- Improves audit visibility with on-screen text and workstation evidence capture
- Supports secure enterprise deployment with HTTPS and RTSPS
- Reduces infrastructure load through channel merge optimization
- Improves reliability with ANR and Edge Recording behavior
- Enables richer workflows using audio, metadata, alarms, and relay control
Important Note
Feature availability may depend on the specific XProtect version, system configuration, security policy, and project architecture. For advanced deployments, ITVDesk can be adapted to project-specific requirements, including channel structure, stream behavior, event mapping, and enterprise security settings.
Need a Milestone Integration?
If you are building a Milestone project that requires desktop video, POS capture, remote operator monitoring, audio integration, or advanced ONVIF virtual device workflows, ITVDesk can be deployed as a flexible integration layer inside your XProtect environment.
