| IP CAMERA FUTURES | |||
| ONVIF support | Profile M, T, S, G, C, Q | ||
| Striming protocol | RTSP/RTP | ||
| RTSP/RTP support | RTP over TCP/UDP, RTP multicast, RTSP over HTTP, RTSP over HTTPS, RTSP over Websocket, Audio back channel, Audio/Video playback, | ||
| ONVIF & RTSP video coding | |||
| ONVIF & RTSP audio coding | G711u, G711a, AAC, G726, OPUS, G722 | ||
| Auto discovery over the network and automatic reconnect |  |
||
| Audio Back channel (Bidirectional audio support) | |
||
| Automatically reports online and disconnect from the network | |
||
| Support mix multichannel and multi ONVIF IP kamera options |
+ ONVIF16 Drive support |
||
| Manage streaming parameters in NVR/VMS | |
||
| Motion detection support | Move mouse, click mouse and click keyboard | ||
| Alarm IN, sending panic switches to NVR / VMS | |
||
| Alarm OUT, receive incoming alarm and activate | Run selected app, shutdown, reboot, computer lock... | ||
| Support Streams | MainStream, SubStream, ThirdStream, FourthStream, CostomStream | ||
| RTSP authentication | Digest and Basic | ||
| ONVIF authentication | WS-UsernameToken | ||
| OSD menu camera support | |
||
| Video filtering | Sharp, Black/White, Blur, Deinterlace | ||
| Automatic transcoding video and audio | Trancode, Tranmuxing, Transrating | ||
| Audio device mix support | Connect a video stream to any audio stream | ||
| Support ONVIF audio and video playback | |
||
| Onvif configuring network and users settings | |
||
| Onvif relay out settings | |
||
| Video rotation support | |
||
| MEDIA SOURCE | |||
| Stream PC monitor (1, 2 or more monitors) | |
||
| Stream Web camera (1, 2 or more web camera) | |
||
| Stream from Folder (1, 2 or more *.mp4, *.flv file) | |
||
| Stream audio PC (1, 2 or more audio) | |
||
| Audio mixing with any media source (desktop + microphone ...) | |
||
| Connecting to another IP camera | rtmps, rtmpt, rtmpe, rtmpfp, rtmpts, rtmpte |
||
| Convert 3th party RTSP, RTMP, HTTP JMPEG streams to ONVIF IP Camera profile T, M, S |
|
||
| Total number of medias (desktops + webcams + external streams + From FIle + External IP Kamera) | |||
| VIDEO AND AUDIO CODING | |||
| Supported video resolution | |||
| Complete ONVIF video stream setting: fps, bitrate, video encoding, session time, GOV, Profile, I-frame ... | |
||
| Complete ONVIF audio stream adjustment: simple rate, bitrate, audio encoding, session time, mono / stereo ... | |
||
| Rotate all media sources (Desktop, Webcam, From file, External IP cam, Audio only) | |||
| Automatic transcoding (Trancode, Tranmuxing, Transrating) | |
||
| VIDEO ON SCREEN DISPLAY | |||
| Print a keystroke on a video stream. Retrieving computer key presses on the OSD | |
||
| Show time and date | |
||
| Show channel name | |
||
| Adjusting OSD text | |||
| Adjust the color and size of the OSD text | |
||
| ALARM OUT | |||
| Launch another 3th party app | |
||
| Running terminal commands | |
||
| Shutdown computer | |
||
| Reboot computer | |
||
| Lock computer | |
||
| ALARM IN | |||
| Setting the panic button on the computer | |
||
| Set panic alarm duration | |
||
| Notification of sent panic alarm | |
||
| MOTION DETECTION | |||
| Detection mouse move and click |
|
||
| Detection keyboard press | |
||
| Set motion detection duration | |
||
| OTHER FEATURES | |||
| Hidden application mode | |
||
| Automatic start with computer | |
||
| Password protect the application | |
||
| Launch the application in the background | |
||
| Turn off computer and monitor sleep | |
||
| Remove an application from the program list | |
||
| Advance video and audio striming test | |
||
| Installation without Internet | |
||
| Use Advanced Encryption Standard for protect user data | |
||
ITVDesk support new profile T* and S. Compatible with any NVR/VMS which supports ONVIF standard.
Multiple Screen Live (monitors) supported
ITVDesk IP Camera can captures and streams multiple computer desktops simultaneously.
Multiple Video Device (webcams) supported
ITVDesk supports all connected webcams on local computer. It allows one to connect many webcams to the same ITVDesk and stream them simultaneously.
Multiple Audio (Microphone) supported
Any Microphone which available in the system could be configured to use with any Video input. There is also an option to configure Windows Default Microphone for using. ITVDesk produces audio feed along with video. Audio is provided in G.711 (PCMU), AAC, G726 encoding formats
Multiple From File supported
Any *.mp4 or *.flv video file can be stream over ITVDesk ONVIF IP Camera
Mutiple External IP Camera connection
ITVDesk support connected with external IP camera and transcoding, transmuxing, trasrating stream to new ONVIF IP Camera.

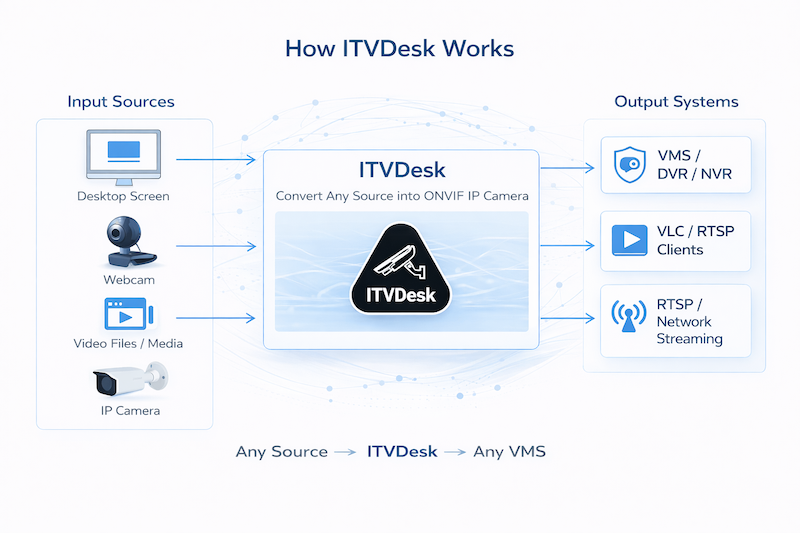

ITVDesk is first app with mix Multiple Channels and Multiple IP Cameras.
Multiple Channels is give users to create full virtual ONVIF IP Camera with multiple video channels – one channel for each video input (screen or webcam).
(Example – if there are 2 monitors connected and 3 webcam, the ITVDesk will appear as 1 ONVIF device with 5 video outputs/channels.)
Multiple Cameras give users to create a new full virtual ONVIF IP Camera with one video input. This could be useful if NVR/VMS does not support ONVIF multichannel devices/ONVIF16 drive. In this case, ITVDesk can produce a new dedicated IP camera for each video input. All cameras will share the same IP address, but will have a different port. (Example – if there are 2 monitors connected and 1 webcam, the ITVDesk will appear as 3 ONVIF devices running on ports 7000, 7001, and 7002. Each device will have 1 video channel.)
All media source have rotation supported
ITVDesk can automatically rotate output video stream. There are several rotation modes:
- Disable – Not changes on putput.
- Auto - In this mode ITVDesk will transform Portrait oriented screens to Landscape oriented video stream. The same way how most of hardware ONVIF encoders do. Landscape screens will be streamed without a change.
- R180. Rotate output stream by 180 degree to the left.
- FlipH. Flip the output stream horizontally.
- FlipV. Flip the output stream vertically.
Bidirectional - Audio-Back channel
Bidirectional audio in ITVDesk with surveillance system. We use it in ITVDesk IP Camera app, allowing a send sound on computer over VMS, NVR an ability to converse back and forth saves time, resources and money.
OSD One Screen Display settings
- ITVDesk IP Camera have implement KeyStroke module and have powerful algorithm can record in video stream everything that is typed on the keyboard, including passwords, regardless of the application used (Skype, Facebook, AOL, AIM, GTalk, etc.).
- Advance overlay video with name ch, time and date, mouse, costom text Top/Down left and right.
H265 video encoding support with support ONVIF Profile T
ITVDesk supports hardware accelerated High-Efficiency Video Coding (HEVC/H265), it’s a more efficient encoding standard. In comparison to h.264, MP4 or MJPEG, HEVC offers ~60% better data compression at the same level of video quality. With this codec video could be streamed with lowest possible bit rate while maintaining a high image quality level.
Key features of ITVDesk:
- Support for various audio and video files.
- Automatic transcoding.
- Support for streaming video from webcam, active screen, from file, external IP camera, external media servers.
- Support for streaming video streams H265, H264, MP4, MJPEG
- Support for streaming G711, G726, AAC audio stream
- Support for configuring audio and video output parameters
- Support for connecting to external media source, include rtsp, rtmp and http mjpeg stream
- Supports bidirectional sound flow
- RTSP support via HTTP
- Support RTSP push function ( RTMP to RTSP, RTSP to RTSP, HTTP mjpeg to RTSP )
- Support RTP multicast function on all IP cameras
- Support RTP over UDP, RTP over TCP.
- Supports ONVIF audio / video playback function
- Auto discovery over the network.
- Auto online hello and bye message over the network.
- Manage camera parameters directly from NVR / VMS.
- Multi-threaded processing, less resource usage.
- Secured ONVIF communication.
- Secured RTSP streaming.
- KeyStroke keyboard.
- Alarm IN function.
- Alarm OUT function.
- FPS adjustable.
- Clock and Date overlay.
- ONVIF Motion events.
- Test mode.
Direct use and select video stream over RTSP:
Sometimes you might need to access it from various locations, such as a different computer or a handheld device, ITVDesk, that can help you achieve quick and efficient results.
Play mainStream from IPCamera ipc1, ipc2, ipc3... is number of created IP Camera:
- Camera 1: rtsp://yourip:port/ipc1-stream1/screenlive (play MainStream with media source Desktop 0)
- Camera 2: rtsp://yourip:port/ipc2-stream1/screenlive
- Camera 3: rtsp://yourip:port/ipc3-stream1/screenlive
Play MainStream, SubStream, ThirdStream, FourthStream, CustomStream from IP Camera 1
- Camera 1: rtsp://yourip:port/ipc1-stream1/screenlive (play MainStream with media source screenlive)
- Camera 1: rtsp://yourip:port/ipc1-stream2/screenlive
- Camera 1: rtsp://yourip:port/ipc1-stream3/screenlive
- Camera 1: rtsp://yourip:port/ipc1-stream4/screenlive
- Camera 1: rtsp://yourip:port/ipc1-stream5/screenlive
If your system have multiple monitors, mutiple webcamera etc... you can use rtsp://yourip:port/screenliveN , the N to specify the monitor, webcamera, audio index, start from 0, suchas:
Play computer ScreenLive N0, N1, N2 and webcamera N0 from IP Camera
- Camera 2: rtsp://yourip:port/ipc2-stream1/screenlive
- Camera 2: rtsp://yourip:port/ipc2-stream1/screenlive1
- Camera 2: rtsp://yourip:port/ipc2-stream1/screenlive2
- Camera 2: rtsp://yourip:port/ipc2-stream2/videodevice (webcamera - SubStream)

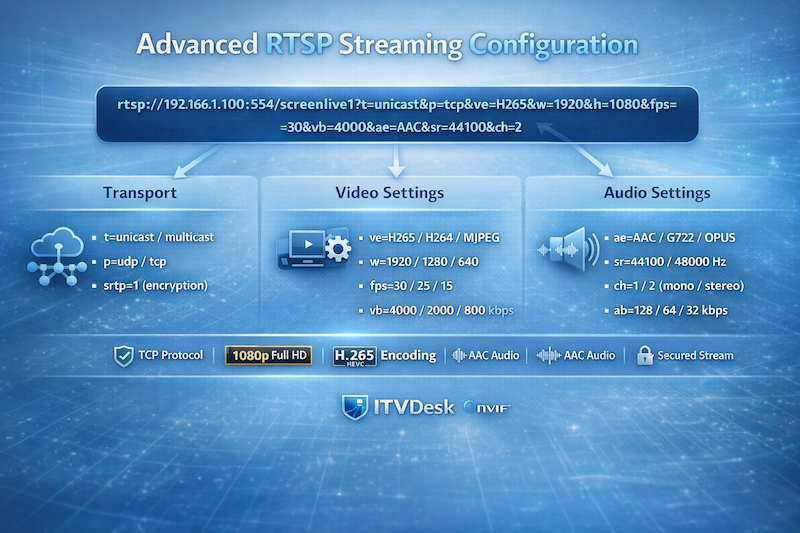

Direct use and setup video stream over Metadata:
- Camera 1: FromFile: rtsp://yourip:port/ipc1-stream1/File1_media.mp4&t=unicast&ve=H265&p=udp&w=1280&h=1080&ae=G726
- Camera 1: ScreenLive: rtsp://yourip:port/ipc1-stream1/screenlive/ve=H265&p=udp&w=640&h=480
&t = type of transfer (unicast or multicast)
&p = udp or tcp
&ve = video encoding (H265, H264, MP4, MJPEG)
&w = video widht
&h = video hight
&ae = audio encoding (G711, G726, AAC)
ITVDesk Key features:
- Support for various audio and video files.
- Automatic transcoding.
- Support for streaming video from webcam, active screen, from file, external IP camera, external media servers.
- Support for streaming video streams H265, H264, MP4, MJPEG
- Support for streaming G711, G722, G726, AAC audio stream
- Support for configuring audio and video output parameters
- Support for connecting to external media source, include rtsp, rtmp and http mjpeg stream
- Supports bidirectional sound flow
- RTSP support via HTTP
- Metadata support
- Support RTP multicast function on all IP cameras
- Support RTP over UDP, RTP over TCP.
- Supports ONVIF audio / video playback function
- Auto discovery over the network.
- Auto online hello and bye message over the network.
- Manage camera parameters directly from NVR / VMS.
- Multi-threaded processing, less resource usage.
- Secured ONVIF communication.
- Secured RTSP streaming.
- KeyStroke keyboard.
- Alarm IN function.
- Alarm OUT function.
- FPS adjustable.
- Clock and Date overlay.
- ONVIF Motion events.
- Test mode.
ITVDesk allows for managing of the following parameters directly from VMS/NVR/ONVIF Device Manager:
- Video Encode: H264, H265, MP4 or MJPEG
- Audio Encode: G711, AAC, G726
- Camera reboot/reset/shutdown
- Change network settings. IP address, Gateway, DNS, ONVIF port, SSL port.
- Relay control (Alarm Out).
- Video profile (software ships with 5 profiles for each video channel
MainStream, SubStream, ThirdStream, FourthStream, CostomStream NVR can create own profile if needed).
- Device Scopes
- Device user with level (User, Administrator or Operator)
- Video resolution (software can resize original desktop resolution)
- Setup video Encode profile:
H264: Baseline, Main, Extended, High.
H265: Main, Main10
MP4: SP, ASP
- GOV size
- Session Timeout
- Max Bitrate
- FPS
ITVDesk covers the following ONVIF services:
- Device discovery
- Device management
- Media service
- Media service 2
- Device IO
- OSD configuration
- Image Setting
- Recording Control
- Recording search
- Recording replay
- Event Polling
- Event Notification
- Support HTTPS
Compatible with ONVIF profile T, profile S, profile G, profile C, profile Q, Profile A
UI part of IT Desk can be protected by password and hide in background (Ctrl+Alt+I).
For more details please visit: SupportPage >>
* - ITVDesk have FULL supports of the ONVIF Profile T, S functionality.
* - ONVIF interface compatibility is tested by ONVIF official test tool V19.12.
* - All stream have Transcoding, Transmuxing, Transrating and can be setting front and over ONVIF protocol
